3. Classification

Motivation

To get small handful possible number of outputs instead of infinite number of outputs

Logistic regression (Classification)

Output is either 0 or 1

Sigmoid function

outputs value between 0 and 1

$g(z) = \frac{1}{1+e^{-z}}$ ($0 < g(z) < 1)$

Steps

1. define z function

$f_{\overrightarrow{w},b}(\overrightarrow{x}) = z = \overrightarrow{w}\cdot\overrightarrow{x} + b$

1. take z function to sigmoid function

$g(z) = \frac{1}{1+e^{-z}}$

Logistic regression

→ $f_{\overrightarrow{w},b}(\overrightarrow{x}) =g( \overrightarrow{w}\cdot\overrightarrow{x} + b) = \frac{1}{1+e^{( \overrightarrow{w}\cdot\overrightarrow{x} + b)}} = P(y=1|\overrightarrow{x};\overrightarrow{w},b)$

The probability that class is 1

• example
  • x is tumor size
  • y is 0(not malignant) or 1(malignant)
  • f(x) = 0.7 → 70% chance that y is 1
  • $P(y=0) + P(y=1) = 1$
    • $f_{\overrightarrow{w},b}(\overrightarrow{x}) = P(y=1|\overrightarrow{x};\overrightarrow{w},b)$
    • probability that y is 1, given input $\overrightarrow{x}$, parameters $\overrightarrow{w},b$

Decision boundary

Prediction: $\hat{y}$

Is $f_{\overrightarrow{w},b}(\overrightarrow{x})$ ≥ 0.5?

• Yes: $\hat{y} = 1$
• No: $\hat{y}=0$

When is $f_{\overrightarrow{w},b}(\overrightarrow{x})$ ≥ 0.5?

• $g(z)$ ≥ 0.5
• z ≥ 0
• $\overrightarrow{w}\cdot\overrightarrow{x} + b$ ≥ 0 → predicts 1 (when $\overrightarrow{w}\cdot\overrightarrow{x} + b$ < 0 → predicts 0)

Cost Function

Squared error cost

$J(\overrightarrow{w},b)=\frac{1}{m}\sum_{i=1}^{m}\frac{1}{2}(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})-y^{(i)})^2$

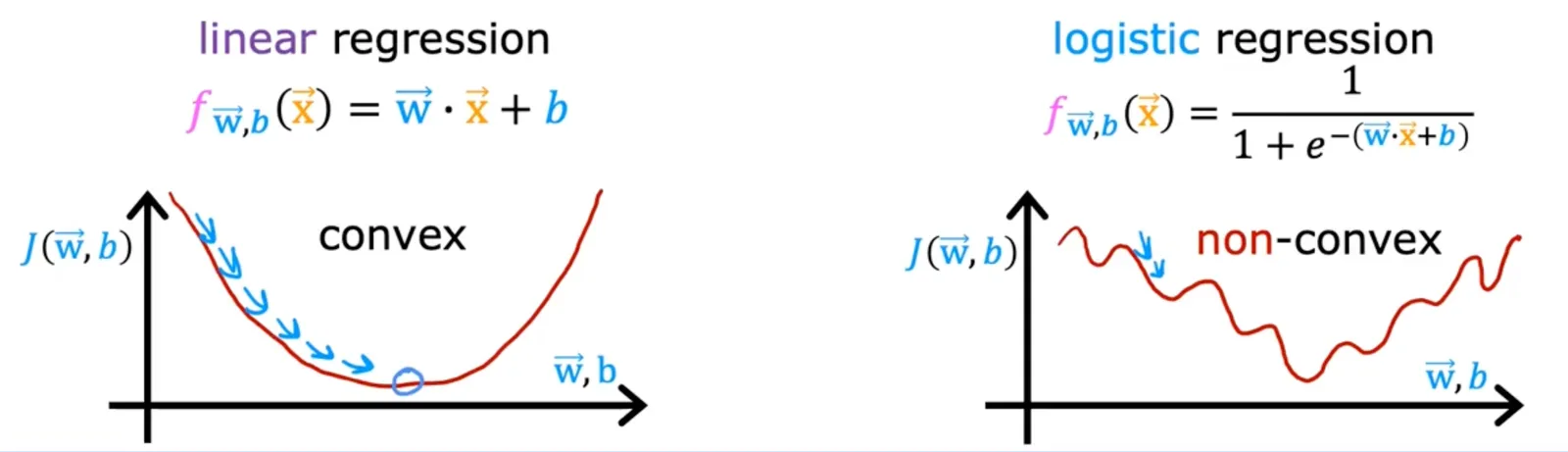

Squared error cost is not a good choice for logistic regression because it can have multiple local minima

$\frac{1}{2}(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})-y^{(i)})^2$

• → Loss function $L(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)}),y^{(i)}))$

Logistic loss function

$L(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)}),y^{(i)}))$

• $-log(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)}))$ if $y^{(i)} =1$
• $-log(1-f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)}))$ if $y^{(i)} =0$

When loss close to 0, the predictions is close to the answer

Cost

Loss function will make a convex shape that can reach a global minimum

$J(\overrightarrow{w},b)=\frac{1}{m}\sum_{i=1}^{m}L(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)}),y^{(i)}))$

• $-log(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)}))$ if $y^{(i)} =1$
• $-log(1-f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)}))$ if $y^{(i)} =0$

Simplified Cost Function

$L(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)}),y^{(i)})) = - y^{(i)}log(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})) - (1-y^{(i)})log(1-f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)}))$

• if $y^{(i)} =1$
  • $L(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)}),y^{(i)})) =-1log(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)}))$
• if $y^{(i)} =0$
  • $L(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)}),y^{(i)})) =-1log(1-f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)}))$

Loss function

$L(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)}),y^{(i)})) = - y^{(i)}log(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})) - (1-y^{(i)})log(1-f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)}))$

Cost function

$J(\overrightarrow{w},b)=\frac{1}{m}\sum_{i=1}^{m}[L(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)}),y^{(i)}))]$

• = $-\frac{1}{m}\sum_{i=1}^{m}[ y^{(i)}log(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})) + (1-y^{(i)})log(1-f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)}))]$

Gradient Descent

$J(\overrightarrow{w},b)=-\frac{1}{m}\sum_{i=1}^{m}[ y^{(i)}log(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})) + (1-y^{(i)})log(1-f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)}))]$

repeat {

$w_j=w_j-a\frac{d}{dw_j}J(\overrightarrow{w},b)$

• $\frac{d}{dw_j}J(\overrightarrow{w},b) = \frac{1}{m}\sum_{i=1}^{m}(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})-y^{(i)})x_j^{(i)}$

$b=b-a\frac{d}{db}J(\overrightarrow{w},b)$

• $\frac{d}{db}J(\overrightarrow{w},b) = \frac{1}{m}\sum_{i=1}^{m}(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})-y^{(i)})$

} simultaneous updates

Gradient descent for logistic regression

repeat {

$w_j = w_j - a[\frac{1}{m}\sum_{i=1}^{m}(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})-y^{(i)})x_j^{(i)}]$

$b = b-a[\frac{1}{m}\sum_{i=1}^{m}(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})-y^{(i)})]$

}

Linear regression model

$f_{\overrightarrow{w},b}(\overrightarrow{x})=\overrightarrow{w}\cdot\overrightarrow{x}+b$

Logistic regression

$f_{\overrightarrow{w},b}(\overrightarrow{x})=\frac{1}{1+e^{-\overrightarrow{w}\cdot\overrightarrow{x}+b}}$

• Same concept
  • monitor gradient descent (learning curve)
  • vectorized implementation
  • Feature scaling

The problem of overfitting

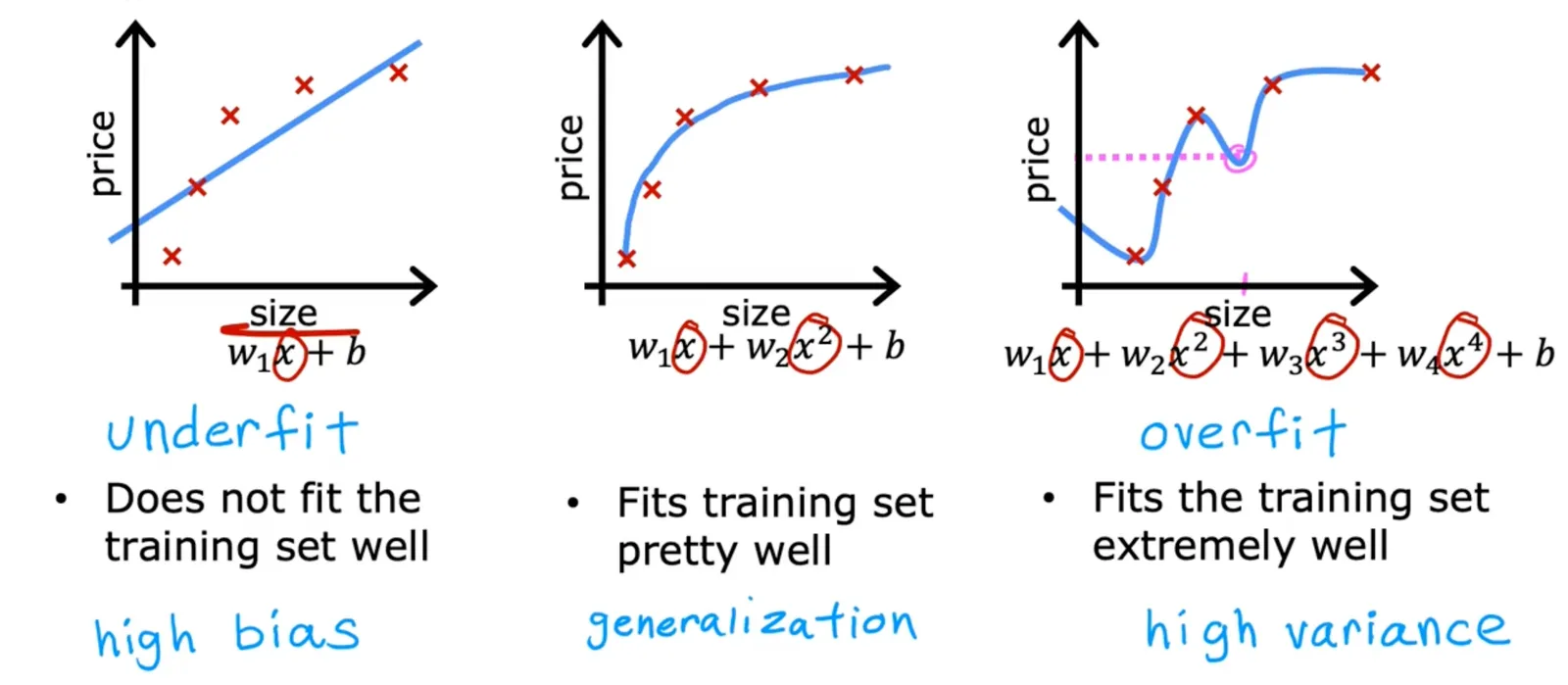

Linear regression

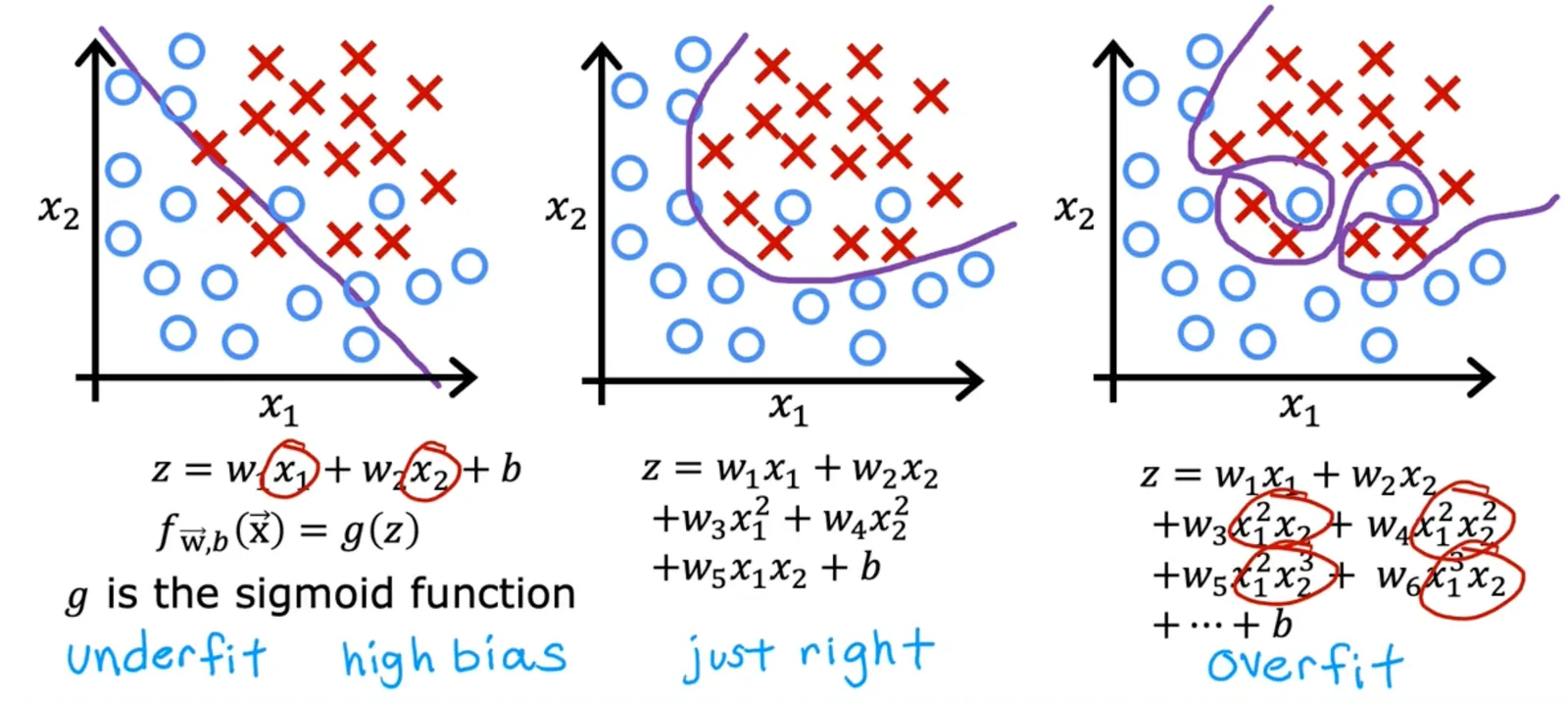

Classification

Addressing overfitting

• Collecting more training examples
• Selecting features to include or exclude
  • Feature selection
• Reduce the size of parameters
  • Regularization

Cost Function to Regularization

Intuition

$min_{\overrightarrow{w},b}\frac{1}{2m}\sum_{i=1}^{m}(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})-y^{(i)})^2$

• small values w1, w2,…wn,b → simpler model less likely to overfit
  • $J(\overrightarrow{w},b)=\frac{1}{2m}\sum_{i=1}^{m}(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})-y^{(i)})^2$
• Lambda $\lambda$
  • regularization parameter $\lambda$ > 0
  • $J(\overrightarrow{w},b)=\frac{1}{2m}\sum_{i=1}^{m}(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})-y^{(i)})^2 + \frac{\lambda}{2m}\sum_{j=1}^{m}w_j^2 + \frac{\lambda}{2m}b^2$
    • mean squared error
      • $\frac{1}{2m}\sum_{i=1}^{m}(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})-y^{(i)})^2$
    • Regularization term
      • $\frac{\lambda}{2m}\sum_{j=1}^{m}w_j^2$
    • Can include or exclude b

Regularization

$min_{\overrightarrow{w},b}J(\overrightarrow{w},b)=min_{\overrightarrow{w},b}[\frac{1}{2m}\sum_{i=1}^{m}(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})-y^{(i)})^2 + \frac{\lambda}{2m}\sum_{j=1}^{m}w_j^2]$

• Linear regression example

$f_{\overrightarrow{w},b}(\overrightarrow{x})=w_1x+w_2x^2+w_3x^e+w_4x^r+b$

choose $\lambda = 10^{10}$ → underfits

choose $\lambda = 0$ → overfits

Regularized linear regression

$min_{\overrightarrow{w},b}J(\overrightarrow{w},b)=min_{\overrightarrow{w},b}[\frac{1}{2m}\sum_{i=1}^{m}(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})-y^{(i)})^2 + \frac{\lambda}{2m}\sum_{j=1}^{m}w_j^2]$

Gradient descent

repeat {

$w_j = w_j - a \frac{d}{dw}J(\overrightarrow{w},b)$

$b = b - a\frac{d}{db}J(\overrightarrow{w},b)$

}

• $w_j = w_j - a \frac{d}{dw}J(\overrightarrow{w},b)$
  • $= \frac{1}{m}\sum_{i=1}^{m}(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})-y^{(i)})x_j^{(i)}+\frac{\lambda}{m}w_j$
• $b = b - a\frac{d}{db}J(\overrightarrow{w},b)$
  • $= \frac{1}{m}\sum_{i=1}^{m}(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})-y^{(i)})$
  • don’t have to regularize b

Implement gradient descent with regularized linear regression

repeat {

$w_j = w_j - a [\frac{1}{m}\sum_{i=1}^{m}(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})-y^{(i)})x_j^{(i)}+\frac{\lambda}{m}w_j]$

$b = b - a\frac{1}{m}\sum_{i=1}^{m}(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})-y^{(i)})$

}

$w_j = w_j - a [\frac{1}{m}\sum_{i=1}^{m}(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})-y^{(i)})x_j^{(i)}+\frac{\lambda}{m}w_j]$

• $w_j = 1w_j - a \frac{\lambda}{m}w_j-a\frac{1}{m}\sum_{i=1}^{m}(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})-y^{(i)})x_j^{(i)}$
• $w_j = w_j (1- a \frac{\lambda}{m})-a\frac{1}{m}\sum_{i=1}^{m}(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})-y^{(i)})x_j^{(i)}$
  • usual gradient descent update : $a\frac{1}{m}\sum_{i=1}^{m}(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})-y^{(i)})x_j^{(i)}$
  • shrink w : $(1- a \frac{\lambda}{m})$

How we get the derivative term

$\frac{d}{dw_j}J(\overrightarrow{w},b)=\frac{d}{dw_j}[\frac{1}{2m}\sum_{i=1}^{m}(f(\overrightarrow{x}^{(i)}-y^{(i)})+\frac{\lambda}{2m}\sum_{j=1}^{n}w_j^2]$

• = $\frac{1}{2m}\sum_{i=1}^{m}[(\overrightarrow{w}\cdot\overrightarrow{x}^{(i)}+b-y^{(i)})2x_j^{(i)}]+\frac{\lambda}{2m}2w_j$
• = $\frac{1}{m}\sum_{i=1}^{m}[(\overrightarrow{x}\cdot\overrightarrow{x}^{(i)}+b-y^{(i)})x_j^{(i)}]+\frac{\lambda}{m}w_j$
• = $\frac{1}{m}\sum_{i=1}^{m}[(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})-y^{(i)})x_j^{(i)}]+\frac{\lambda}{m}w_j$

Regularized Logistic Regression

Logistic regression

$z = w_1x_1+...+w_nx_n+b$

Sigmoid function

$f_{\overrightarrow{w},b}(\overrightarrow{x})=\frac{1}{1+e^{-z}}$

Cost function

$J(\overrightarrow{w},b)=-\frac{1}{m}\sum_{i=1}^{m}[ y^{(i)}log(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})) + (1-y^{(i)})log(1-f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)}))]+\frac{\lambda}{2m}\sum_{j=1}^{n}w_j^2$

• $min_{\overrightarrow{w},b}J(\overrightarrow{w},b)$

Gradient descent

repeat {

$w_j = w_j - a[\frac{1}{m}\sum_{i=1}^{m}(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})-y^{(i)})x_j^{(i)}]+\frac{\lambda}{m}w_j$

$b = b-a[\frac{1}{m}\sum_{i=1}^{m}(f_{\overrightarrow{w},b}(\overrightarrow{x}^{(i)})-y^{(i)})]$

}
